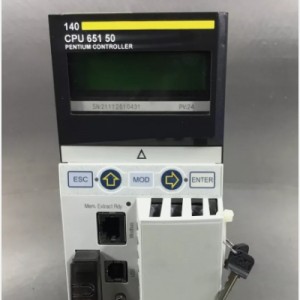

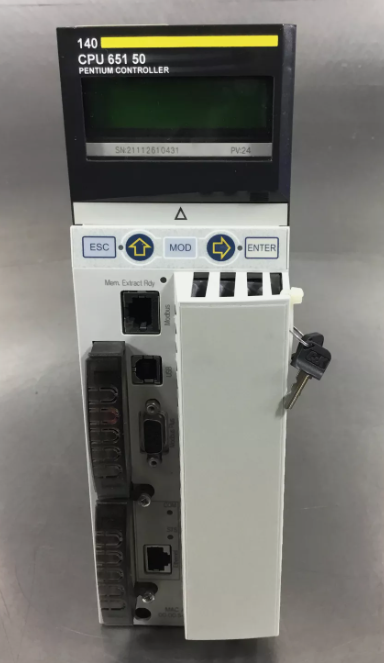

Schneider 140CPU65150 Unity processor, Modicon Quantum automation platform, Modbus Plus, 768kB RAM, 166MHz
Deskripsyon
Paggama | Schneider |
Modelo | 140CPU65150 |
Impormasyon sa pag-order | 140CPU65150 |
Katalogo | Quantum 140 |
Deskripsyon | Schneider 140CPU65150 Unity processor, Modicon Quantum automation platform, Modbus Plus, 768kB RAM, 166MHz |
Sinugdanan | Franch(FR) |
HS Code | 3595861133822 |
Dimensyon | 11cm * 18cm * 32cm |
Timbang | 1.43 kg |
Mga Detalye
Sakup sa produkto | Modicon Quantum automation platform |
---|---|
Uri sa produkto o sangkap | Proseso sa panaghiusa |
Frequency sa orasan | 166 MHz |
---|---|
Gidaghanon sa mga slots | 10 16 6 4 2 |
Gidaghanon sa mga racks | 2 - (mga) lokal nga rack |
Gidaghanon sa gipang-apod-apod nga istasyon sa I/O | 63 (mga) estasyon - 1 (mga) rack - 3 (mga) network sa Modbus Plus |
Gidaghanon sa hilit nga istasyon sa I/O | 31 - 2 rack(s) kada S908 remote I/O 31 - 2 rack(s) kada ethernet Quantum remote I/O 16 - 2 rack(s) kada ethernet X80 remote I/O |
Discrete nga I/O nga numero | 31744 inputs, 31744 outputs - layo 8000 inputs, 8000 outputs - apod-apod - matag network Modbus Plus Walay kinutuban (26 slots max) - lokal Walay kinutuban (31 tulo sa 28 slots max) - ethernet remote I/O |
Analogue nga I/O nga numero | 500 inputs, 500 outputs - apod-apod - matag network Modbus Plus 1984 inputs, 1984 outputs - S908 remote I/O Walay kinutuban (26 slots max) - lokal Walay kinutuban (31 tulo sa 28 slots max) - ethernet remote I/O |
Espesyal nga aplikasyon nga I/O | Tukma nga time stamping Serial nga link Taas nga tulin nga interrupt input Kontra |
Serbisyo sa komunikasyon | Ethernet nga router |
Gidaghanon sa opsyonal nga mga module | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
Maximum nga gidaghanon sa mga koneksyon | 1 USB 2 AS-Interface - gipang-apod-apod 4 AS-Interface - hilit 6 Ethernet TCP/IP - lokal 6 Modbus Plus - lokal 6 Profibus DP - lokal 1 Modbus (RS232/485 Modbus/ASCII) |
Integrated nga matang sa koneksyon | 1 Modbus Plus nga adunay 1 Ethernet TCP/IP uban sa 1 Modbus uban sa 1 USB uban sa |
Mga tseke | Pagkontrol sa proseso |
Deskripsyon sa memorya | Mapalapad nga 7168 kB - programa nga adunay PCMCIA card Mapalapad nga 8 MB - pagtipig sa file gamit ang PCMCIA card Internal nga RAM 768 kB |
Pagbalhin function | Key switch memory port on/off |
Istruktura sa aplikasyon | 1 cyclic/periodic master nga buluhaton - 1 periodic paspas nga buluhaton - 128 I/O interrupt nga mga buluhaton - 128 makabalda nga mga buluhaton - 32 nga mga buluhaton sa paghunong sa timer - 4 ka auxiliary nga buluhaton - |
Gidaghanon sa mga instruksyon kada ms | 10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean ug 35 % numerical |
Overhead sa sistema | 0.2 ms alang sa paspas nga buluhaton 1 ms alang sa master nga buluhaton |
Kinahanglanon karon sa bus | 2160 mA |
Lokal nga pagsenyas | 1 LED (berde) para sa kalihokan sa Ethernet (COM) 1 LED (pula) alang sa pagbangga sa Ethernet |
Koneksyon sa kuryente | 1 female connector, connector type: SUB-D 9 para sa pagkonektar sa Modbus Plus network 1 connector, connector type: RJ45 alang sa pagkonektar sa Ethernet network 1 connector, connector type: RJ45 alang sa pagkonektar sa Modbus bus |
Mga sertipikasyon sa produkto | Misc (Marine) UL CE CSA GOST |
---|---|
Mga sumbanan | HazLoc |
